Category: Tests / Reviews

AI cuts reflections in glasses

Posted on By

This is a follow-up to our last post about PortraitPro. Using a self-portrait taken for the purpose with bad reflections in uncoated reading specs, I went through the options of the reflection removal process. Mid-May a 15% discount was authorised for code CC524 at www.anthropics.com which applies to all 50% discounted program downloads.

It was taken on the Sony A7IV with 85mm f/1.8, tripod, ISO 400, lens at to f/8 and control through iPhone 15 Pro Max using Sony Creators’ App remote viewing and control. The screen on the A7IV was vertical and facing me, so I could also look at the camera and see the reflections move as I changed my head angle. Setting this up showed me some problems with the A7IV articulated screen design I had not realised – it can only face the self-portrait subject when folded out at the left-hand end of the camera, which with a Arca-Swiss L-plate means hanging down… obscured by the tripod head! So no L-plate but standard Arca small plate, and camera upside down compared to normal hand holding.

This is the result using PortraitPro V24. Read on to learn more, and don’t forget if you decide to get this program use Cameracraft’s additional 10% discount code, CCV245.

PortraitPro has come a long way in a few years. At the top end, the Studio Max version is a £308 program which costs £154 with the 50% download discount that Anthropics have offered ever since the days of CDs in packaging. Since no-one now buys a CD, the real price is £154 (with 10% off for Cameracraft’s code, CV245 in the latest May/June issue).

You may not need Studio Max with its 48-bit file capability, workflow from raw to exported finals, multiple image batch processing intended to auto retouch complete portrait sessions, handling of wedding groups and granular control fine-tuning its effects. The basic V24 includes this function and costs £99 less 50% download only less our 10% – so £44.55.

It is now very fast indeed on Apple Silicon and integrates with Adobe’s photo programs. Under the hood it uses some of Adobe’s functions, without venturing into Generative Fill AI to change a digital capture beyond the scope of many competitions. It uses AI, but does not rely on on stolen images or ones licensed for almost nothing in bulk from the big picture libraries. Anthropics built their platform on measurements of the human face and body, research into what people like or dislike, and many years of coding. When it uses image-based AI it draws that from your photo and its bank of facial features modelling data.

The Reflections in Glasses problem

Recently we came across a question in a professional photo organisation Facebook group asking how it was possible to remove reflections from glasses. It’s very difficult, and when it happens in a set of pictures where the photographer is unable to prevent it, it can ruin groups and presentation shots. Many battery studio-location flash heads now have very low power modelling and it’s all too easy to light your subject and fail to spot that your octa-box is reflecting in specs.

PortraitPro’s specimen example might just be good luck, so I decided to test Version 24. My studio room has shutters when blackout is needed. Two pure white plain blinds 110 x 220cm cover the tall south facing windows to prevent furniture, fabrics, art and photographs fading or warping in direct heat. They make a wonderful giant dual light source in daytime sun even in midwinter but reflect in glasses when the camera angle is not just right.

Removing reflections from specs does not come under the Eye menu – it’s under the “Inpainting menu” along with Mouth & Teeth and Remove Stray Hairs.

This is a crop from the original file.

The Reduce Reflections in Glasses view above shows other retouching functions too (notice some reductions in skin blemishes and wrinkles) but has the reflections reduction set to Off. When you select Remove Reflections in Glasses, you see choices for Off (the start position) then Options 1 to 5. Each is a different AI generated restructuring of what should be visible through the reduced reflection. My eyes are old enough to be slightly difficult and it was interesting to see the five choices.

Option 1

Option 2 (note the left eye eyelid in all these and how it changes).

Option 3 which I felt got the eye almost right, though further retouching would be needed for a portrait. It would be good enough for a PR or informal shot.

Option 4 rather odd mismatched detail.

Option 5 eyelid droop…

Option 3 got the upper eyelid almost perfect (not quite but acceptable) and the Strength slider did allow the reflection to be eliminated to the degree shown above. However, it looked better with 85% effect or even the 50% of the earlier example, a faint reflection remaining without obscuring the eye.

The time taken on my Mac M2 Studio Max was next to nothing, I didn’t bother to time it as everything happens in real time include the export from the starting 33MP JPEG to a same size with all PortraitPro’s very subtle modification of the portrait. The defaults were just right but I increased fine wrinkle reduction out of vanity!

After saving a copy of processed result I also saved a .ppx file (the Project) which is a bit like an Adobe .XML sidecar file, and re-opens your original with all the edits at the point you saved this snapshot, reversible and adjustable as needed.

A tougher test

Here’s a worse example than anything you should end up with, so I set maximum strength on this. Option 4 worked best, and despite my eyes being almost entirely obscured by double reflections in my computer reading specs, it was not a bad fix at all. My ‘proper’ specs are coated of course and don’t reflect as badly.

I’m sure I could ask Adobe AI to do something the Generative Fill after masking the reflection area, but in the time it would take me to brush a mask in place, the entire PortraitPro glasses reflection removal would be done and dusted. Is it worth £139 (after our code CCV245 discount)? That depends on what your time is valued at and whether you ever encounter an error in shooting which leaves reflections ruining a shot.

– David Kilpatrick

To see Anthropics PortraitPro Studio Max, and the other versions which start from £49.95 (right now there’s a 15% CC524 discount, update May 23rd 2024) – all include this reflection removal function alongside stacks of other tools – go to https://www.anthropics.com/portraitpro/

0
Photo Techniques, software, Software Reviews, Sony Digital Cameras, Technology, Tests / Reviews

Tamron’s 150-500mm in practice on the Fujifilm X system

Posted on By

Charles Brooker writes about his experience with theTamron 150-500 vs Fujifilm 100-400 (with 1.4x Teleconverter)

My photographic journey hasn’t seen much need for me to compare lenses especially with the Fujifilm ecosystem being pretty lacking in competition. I had lusted after the Fujifilm 100-400 for a long while and eventually took the plunge about a year ago. Since then I have probably put it to use in over 50,000 images across wildlife, sport and occasionally cityscapes. When I got it I adored it. It was the single most expensive purchase I ever made and within a week I had bought the 1.4 extender which for the purpose of the review shall be included as a package. The two packages come out fairly similarly with the Tamron obviously being 150-500 f/5-6.7 and the Fuji being 150-560 f/6.7-8.

Build Quality and Features

At 1725g the Tamron is 400 grams heavier than the Fuji and this extra weight is obvious in the hand but also in terms of significantly reassuring build quality, it is built like a tank and those 400 grams take into account more image stabilisation options and 3 focus limiting options, 0-10m, 10-infinity and all. This compares to the all and 5m-infinity that Fujifilm offer. The switches on the Tamron are all very firm and you know they have been clicked. Unfortunately Tamron have not built this lens for use with the 1.4x tele or any other converter. This would have made for a very interesting test.

 The 100-400 build quality has always been a major weakness in my eyes, it feels plasticky and the tripod mount screws have a habit of loosening (as do the screws holding the lens mount which is enormously off-putting). This screw issue is something that has always perturbed me when it comes to considering the level of weather resistance promised with the lens. I didn’t realise how low the standard of the 100-400 was until I acquired Fujifilm 50-140 and 16-55 f/2.8 lenses which are of supreme quality.

Focusing

I would be inclined to say that the 100-400 feels a little more reassuring in focusing. I would expect that to be the case with a native lens. The focus seems to lock slightly more accurately. However, because the 100-400 only has one focus limiting option I often have a real issue when trying to focus on small birds close up. The focus will miss and hunt. Luckily experience tells me to half hold the shutter and initiate the AF+MF focus option to roughly manually focus then the AF will find it. If a rare bird was to perch for a couple of seconds, I would be more confident of getting a passable shot with the Tamron but more likely to get something very sharp with the Fujifilm. Action photography was a different story. Unfortunately I felt that the Tamron lens was not anywhere near as accurate to the point where I did not feel I could trust it in the same situations I trust the 100-400. Fujifilm have had seven years to tweak autofocus with firmware updates and  Tamron will no doubt work on a fix for this.

Left – pushing the zoom ring forward until the white ring shows friction-locks it at any setting. Right – the lock switch works only at 150mm to hold it firmly when carrying.

Handling

The zoom rings on both lenses I would say are missing the sweet spot – the Fuji feels a touch light, turning is easy but always feels slightly lacking in reassurance, the Tamron is slightly too firm, it would be difficult to zoom accurately as you follow the action. I think the Fujifilm is slightly better on this. Both have zoom locks to stop the lens extending with gravity. The Tamron has a friction lock which is ideal for holding at a set focal length, however if you are using it in a high octane environment it is very easy to accidentally apply it. This is a nice feature and adds to the premium feel of the lens but I used it much less than I thought I would and much of the time I did use it was by mistake! The weight is also a big factor here. I have photographed many sports matches with the 100-400 without any fatigue issues, the Tamron was not a problem for me but I am in my mid-30s and pretty strong. If photographers are concerned about weight on the 100-400 the Tamron offering will be too heavy.

Tripod Use

A pet peeve of mine is that neither the 100-400 or 50-140 have an Arca-Swiss plate on their tripod mount. This lack of attention is downright sloppy and luckily has been rectified with the 150-600. It means putting a third party one on. But given these lenses are almost exclusively used with a battery grip, this then means the camera will not sit flat on a table with the tripod plate added. This also adds a tiny bit more rock into the setup when moving the camera to find a subject and another thing that could come loose in part of the setup. The 100-400 with a 1.4x tele has a bit off rock in the mount and it never feels rock solid. This added to the fact that the tripod mount locking screws have a habit of coming loose is another issue while using the lens on a tripod.

The Fuji system is tripod, Arca-Swiss Plate, lens mount, lens, 1.4 tele, camera so there are five elements of potential play.

The Tamron on the other hand feels a lot more like it is the native lens when using on the tripod. When locked into my Peak Design tripod, it feels like one solid unit The Arca-Swiss mount sits snugly and the lens even feels tighter in the X-Mount system. The tripod mount is rock solid but it is clumsy and has a habit of getting in the way of the switches which significantly reduces the ability to react quickly to surprising action. Manual focus is also very tricky to get at when looking through the EVF.

Image Quality

My standard workflow with the images is to put them through Lightroom and Topaz Denoise when high ISO is required by Scottish Winter. Given it was December and miserable, the lenses were having to work hard at about 1/250 and ISO of 1600-3200. Generally speaking I would say the images from the Fujifilm were a bit sharper, but the images from the Tamron had more pleasing colour and contrast. This is unsurprising as I feel my Fuji 50-140 f/2.8 is definitely better with colour than the 100-400. Personally I feel the thing that makes photographs of birds special is the detail in the feathers and the increased contrast can be added in post.

See: Tamron EU info on the lens

In The Field

Birds

Sharp head and beak with motion in the wings, 1/125s at f/6.7 full aperture, 500mm, ISO 2000

I am lucky to have a very active bird feeding station in my garden with an army of finches trying to eat into my camera budget by emptying feeders in moments. I have a tripod set up in by the French doors and snap away infinitely (electronic shutter is very handy for this as no rolling shutter issues are really noticeable and without this I would be looking at a number of new shutter motors). I have been able to photograph the same bird on the same feeder within seconds using both lenses and settings and really image quality is so close to interchangeable. Looking back at the vast array of finished images I took over the month it would be very difficult to judge which lens took them.

At f/6.7 and 500mm, 1/250s at ISO 1600

Rugby

I have photographed a number of rugby matches with the 100-400 and am aware of where it hits the limitations. I know in good light I can use the 1.4x tele and when it isn’t I can’t. I used the Tamron for the first half and had to change in order to get more light in. Scottish Rugby in January is a real test for a lens and I think the Tamron met its match here, and looking though the hundreds of images I was disappointed by the focus accuracy compared to what I would have expected of the 100-400, but what was more odd was that focus was not locking and tracking, so I would maybe get 4 sharp images in a batch of 10. This cost me the crucial try scoring frame on one occasion.

1/1000s at f/6.3, ISO 3200, 408mm
At 500mm and f/6.7, to get 1/1000s needed ISO 6400

I am not saying the native glass would have got all 10 but I am confident that when focus locks it will stay on track when using that lens. I also discovered that the friction zoom lock became a total pain when using the lens for action photography, the number of times I had unsuspectingly initiated it and then couldn’t work out why the lens wasn’t turning was frustrating when concentrating on following the ball with the subject rapidly increasing in size.

1/250s at f/13, ISO 160, 500mm – a bright subject by comparison with earthbound Scottish winter daylight

The Moon

It is rude to have a telephoto lens and not have a few goes at photographing the moon. I had the lens for quite a while before December in Scotland gave me a clear(ish) night. The lens performed very well but the location of the manual focus ring is very uncomfortable to use when the camera is on a tripod and trying to use the EVF focus peaking system Fujifilm offer.

In Conclusion

If this was a buying guide I would immediately say to go out and buy the Fujifilm 100-400 from WEX second hand. At time of writing you can pick up an ‘excellent’ condition version of the lens for £850 and the teleconverter for £250 which gives you a year of warranty and peace of mind. If you were not willing to buy used paying £1450 for the 100-400 plus £360 for the tele would be negligent. You would be better getting the Tamron for £1400 or the new 150-600 Fuji lens for £1800. Internet forums and Facebook will tell you that there are good copies of the 100-400 and bad but I suspect there are good users and bad!

Picking your priority is the most important thing here. The 100-400 offers you flexibility – when light is tricky you can sacrifice some reach for more light, vital in keeping the fastest shutter possible. It also seemed to have significantly better AF when shooting action and feels slightly better in the hand even if build quality is somewhat lacking.

The Tamron lens is beautifully made but that comes at a weight cost. Initially I loved the handling but with more use, I found the idiosyncrasies of button location, the bulky tripod mount and zoom lock all left me rather frustrated, I never quite got the muscle memory I thought I would. I would like to think any AF issues have been fixed with the recent firmware update (which came as I returned the lens). In order to make a case for buying a third party lens over a native one, I think I need a compelling reason to do so and I don’t think Tamron have given me one.

Charles Brooker is a freelance photographer and also specialises in picture framing and bespoke leatherwork, including handmade camera and equipment bags. He is based in the village of Kirk Yetholm at the northern extreme of the Pennine Way – see https://www.charlesbrooker.com

0
Equipment Reviews, Tests / Reviews

Fake SSD drives hit Walmart in USA

Posted on By

Our good friend and epic photographer Frank Doorhof alerted his Facebook followers today to Walmart selling imaginary 30TB tiny SSD drives for almost nothing. This saga just continues – Amazon has certainly been duped by vendors, Facebook may or may not finally have stopped the fraudulent adverts.

Back in March/April edition of Cameracraft we lifted the lid on one of these fake SSDs. I don’t know if any other UK photo magazines have bothered to do the same. We just try to give readers information they need!

0
Technology, Tests / Reviews, Troubleshooting
high speed flash two images combined

Elinchrom ELC500 TTL studio flash

Posted on By

A new generation from Swiss masters of studio flash Elinca SA brings multi-platform TTL, super-fast recycling and flash durations, brilliant LED modelling and many design innovations. David Kilpatrick has been trying out the twin head kit.

The second wave of any innovation in technology is often safer to invest in than the pioneering first generation. Studio flash offering IGBT duration and power control, allowing much the same TTL and high speed functions found in camera speedlights, has been in development for over a decade but whole generations have been orphaned by advances in wireless trigger and camera firmware.

Finally bringing this to their new mid-range ELC TTL heads – one rung below the ELC Pro and one above the BRX – Elinchrom has worked for maturity in the whole technology. So, when the ELC 125 and 500 TTL arrived they worked much like any head with the EL Skyport Pro. Days later new firmware for the triggers enabled TTL operation, across a range of camera platforms already proven with the portable ELB 500 TTL.

The ELC 125 TTL is a little larger than a D-Lite. The ELC 500 TTL is substantial – as expected.
Continue reading »
0
Equipment Reviews, Flash units, Photo Techniques, Studio, Studio Lighting, Techniques, Technology, Tests / Reviews

Sony E 70-350mm f/4.5-6.3 G OSS

Posted on By

The neatest solution for sharp long tele shots on Sony A6000 series APS-C

  • Excellent full aperture performance from 70 to 350mm
  • OSS stabilisation works with every Sony Alpha E-mount APS-C body
  • Perfect for movies with A6000, A6300, A6400 without sensor stabilisation
  • Compatible with all NEX and Alpha E-mount models from 2010 on
  • Enhanced OSS with A6500, A6600
  • Compact and light weight
  • G series optical quality, Custom Button on lens, AF/MF and OSS switches on lens
  • Lens lock at 70mm to prevent zoom creep
  • Single extending zoom barrel
  • 67mm non-rotating filter thread
  • Bayonet lens hood included
  • Moisture and dirt resistant multicoating
  • Coverage allows use on full frame bodies with larger than APS-C crop

This lens was purchased in October 2019 and the review is based on nine months of use on Sony A6500 (ILCE-6500), A6300 (ILCE-6300), A6000 (ILCE-6000) and A7R MkIII (ILCE-7M3). Review by David Kilpatrick.

A solution for practical photography out and about – worldwide

I had been using the Sony FE 70-300mm f/4.5-5.6 G OSS full frame tele zoom on my A7RIII for over a year. This lens is very sharp wide open and benefits from the best close focusing in its class at 90cm meaning a scale of 0.31X at 300mm. It weighs 854g and has a double tube zoom extension. As you can see above this lens (left) is only a few mm longer physically than the APS-C 70-350mm (right) but the extra barrel heft, 72mm filters and much larger lens hood meant it needed a bigger kit bag, and proved harder to change quickly when swapping lenses.

The 70-350mm for the smaller image sensor proved if anything even sharper, right to 350mm. Lenses like this often prove soft at maximum focal length and maximum aperture. The 70-300mm at f/5.6 is a third of a stop faster, but to get it as crisp as its newer little brother, it needs to be set f/6.3 – a match in speed. You can see above how much bigger the full frame lens becomes at 300mm. The 70-350mm only weighs 625g but its very fast and silent XD Linear Motor AF can only get as close as 1.5m at 350mm, 1.1m at 70mm. The maximum subject scale is 0.25X.

I knew the 70-350mm would be my choice for travel and daily use with my A6500, but I was going to miss that closer focus. The full frame lens has an AF range limiter, full range or 3m to infinity but oddly no 0.9m to 3m choice. The APS-C lens has no limiter but I have never missed it and rarely used it on the 70-300mm.

My big question was – can I do without the 70-300mm and use the 70-350mm on my full frame bodies?

Cropping power, sensor resolution and coverage

Tests quickly proved that distortion and vignetting kick in fast beyond the crop format field of view, but sharpness remains good and depending on focal and aperture you get much more than APS-C. You can almost get a full frame at close range.

This mushroom (about hand sized) is at 350mm and f/11 on the A7RIII, and you can see the mechanical vignetting cut-off left and right. It’s caused by the lens rear baffle not the optical design – the lens could be modified to remove this, but it’s not advised.

At 70mm on a very demanding subject the distortion without lens profile, on full frame, is extreme (left) but with Lens Profile correction applied at 200% plus -8 Manual, and similar vignetting adjustment, Adobe Camera Raw or Lightroom can almost handle it. On a neutral subject like a portrait with a foliage background the coverage would be fine. More to the point, manual crops much larger than the 16 x 24mm you could expect from an APS-C lens are fully usable.

But why use a full frame body? Unless you own a Sony A7RIV (61 megapixels) you won’t actually get a more detailed distant animal or bird. The modest 24 megapixels of all the current APS-C bodies beats the 18 megapixel crop format of the A7RII/III. Canon users have much the same position, their smaller APS-C (1.6X not 1.5X) and 28 megapixel resolution matches 60 megapixels on 24 x 36mm. The advantage of full frame is that you may catch more of your subject, your framing and tracking active subjects enjoy more leeway. If your subject stays in position the smaller sensor can capture finer detail – and this is where the 70-350mm excels.

This is a good example. At 198mm on the 70-350mm on A6500, it’s the same composition I would have had with the A7RIII and 70-300mm at 300mm and that would have produced a larger more detailed image. There’s only a real benefit to the 70-350mm on APS-C when you’re near the 350mm end. Did I keep both? No – I already knew I wanted a much faster but still compact zoom for the full frame kit, and the Tamron 70-180mm f/2.8 was coming in six months’ time. So I sold the 70-300mm and decided to use the A6500 with 70-350mm for all longer tele shooting.

From the start it proved a very capable combination.

Fast lenses are not as important now

Mirrorless cameras with phase detection autofocus, good high iSO performance and better resolution electronic viewfinders have made wide aperture lenses less essential for low light. The linear motor focus of the 70-350mm rarely misses a shot regardless of conditions. One of my first shoots was a music festival, where this lens allowed me to work from the very back of the hall and never get in the way of the audience.

Processed from a raw file at ISO 6400, this shot of Steve Byrne performing was taken at 350mm wide open at f/6.3. The same on full frame would need a 525mm lens at f/8 and ISO 8000 (a direction Canon is taking with their new 800mm f/11 IS STM for the R mount – the working aperture no longer matters much if the viewfinder stays bright, AF is accurate and there’s not much noise at high ISO settings).

The long reach in a concert hall is one side of using a 350mm on APS-C. Here’s another – the lens may only achieve a quarter life size and need you to be 1.5m away at 350mm, but 0.25X on a 1.5X factor sensor is 0.375X in ‘old macro’ terms. Not only that, the ISO 2500 used here is about the same in grain or noise terms as an ISO 400 film and the stabilisation of this lens on the A6500 is as good as you get. A 1/125s shutter speed did not prevent tiny hairs on the caterpillar’s head being sharply resolved.

This lens is far better than the 18-200, 18-300, 18-400 or 16-300mm I’ve used on a variety of DSLRs for long APS-C reach. It’s free from the residual aberration which demands you ‘stop down one’ to clean up the long end image. Combined with Sony’s PDAF it handles a concert or low indoor light as well as an ƒ2.8-4 on a conventional DSLR.

Compare this with a 100-400mm for the same format

For the sake of 50mm at the long end – a difference of only 12.5% in image scale – the excellent Fujifilm Fujinon XF 100-400mm f/4.5-5.6 R LM also gives a half to a third of a stop more light transmission in its longer range. But look at the cost! It is twice the price and weight, and you can see the size. Gains – a near-apochromatic performance, matched 1.4X and 2X converters available (not an option for the Sony and never likely to be). Losses – only 0.19X close-up scale. It’s remarkable how much difference there is in the physical aspect of these two lenses. I have used both and in practice they are equally sharp on 24 megapixels.

The Sony 100-400mm and Sigma 100-400mm are both full frame lenses and much larger. The 70-350mm is unique as far I can tell, no-one else has a lens like it. It also answers one of the major criticisms of the original E-mount APS-C system, the lack of any lens longer than 210mm and that only in a 55-210mm design best described as consumer grade. I’ve actually found it pretty good for the money – but it’s not much money!

Sony 70-350mm G OSS image gallery

Rather than write much more, I’ll leave you with this gallery. I have reduced the file size but where you see an enlarged section clip along with the full frame – well, you can judge for yourself.

Sony 70-350mm G OSS verdict

If you own any of the APS-C Sony bodies, from the NEX-3 and 5 of 2010 onwards, this lens will not disappoint you. The effective OSS image stabilisation means that even if you prefer to compose and shot using the rear screen and hold the camera away from your body you’ll get sharp stills and steady movies. It’s a big step up from the 55-210mm and much more affordable than, say, a 70-200mm f/4 G with 1.4X or 2X converter.

You may have to control colour fringes in some strong backlight situations with blur when working from raw files, as it’s not an apochromat just a regular very good tele zoom. However the resolution reflects advances in design over the last decade. It’s also a very handsome looking black lens with its silver G logo and designation contrasting with white markings. It feels robust and the zoom and manual focus (when needed) are smooth. The metal bayonet is a tight precise fit on my A6500 and A7RIII, a little less so on my A6000 with its older four-screw type body mount.

I can carry this lens all day without even realising it’s there, round neck or shoulder – and there are not many lenses covering this range you would want to hang on a strap round your neck.

You can support my reviews if you check these links for availability and price:
Amazon UK – didn’t have any stock at all at the time of writing – https://amzn.to/30ZC4Ck
Park Cameras UK – https://tidd.ly/3jLHbP7
WEX UK – https://tidd.ly/3hKRhhA
B&H USA and Worldwide – https://tinyurl.com/y6cguvpo

0
Lenses - E mount, Tests / Reviews

Lightroom 3 Beta 2 – the high ISO wunderkind

Posted on By

I’m not going to bore you with countless 100% clips. Just open this one file. It is a 100% screen shot of a tiled view of the same raw file from a Canon EOS 550D (aka Rebel T2i), taken at ISO 6400.

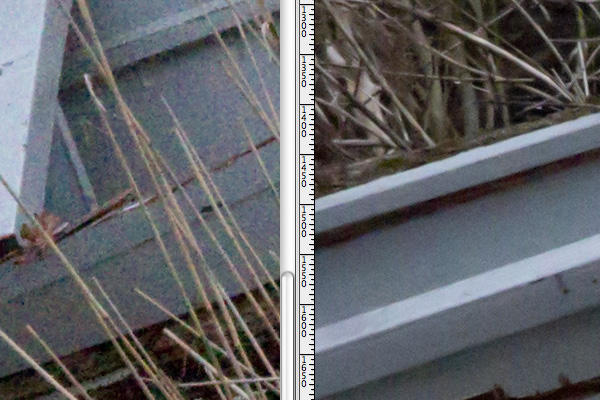

On the left, you see what Adobe Camera Raw 5.6 does with this file using no sharpening, 25 Luminance NR, 50 colour NR. On the right, you see what LR 3 Beta 2 does using the same settings (LR noise reduction has some further options – these are not adjusted).

When exporting the LR image to Photoshop, a dialog box appears saying you may need to install Adobe Camera Raw version 5.7! At the time of writing, version 5.7 is not yet available. But LR3 Beta 2 knows it exists… I used LR Rendering for this sample.

Click the image, open the full size screen shot. Or view it at
http://www.pbase.com/davidkilpatrick/image/123036282

The 12,800 shot is by no means bad either. You could compare it with ISO 1600 shots from the first 10 megapixel CCDs.

Trust me, the LR 3 Beta2 result is superior both to the Canon in-camera JPEG and the Canon DPP processed result. Had I the time I’d post examples of every ISO from 100 to 12,800 and you would see something very special – the increase in size of ‘grain’ with each speed step, but nothing more. NOTHING more than a proprotional increase in grain size, just like film  used to be.

No oatmeal. No porridge. No hot pixels, no smeary watercolours. No colour blurring and luminance smoothing. Just neat, tight, virginal grain. Hmm. I should not have said that. Even so…

And another things – it works on everything. It works on old files, new files. RAW files from before the Ark got stuck on Ararat. Night shots taken when night shots could only make 7 x 5 inch prints. Nikon, Canon, Sony, old Minolta, Pentax, Olympus – download this beta, and you just discovered great pictures in the stuff you thought was rubbish because you accidentally used ISO 800 when that meant shaking the pepperpot over your soup!

Go download! http://labs.adobe.com/technologies/lightroom3/

Tip: to use Lightroom use a front end, just set Photoshop as your editor, and after adjusting the pic hit Command-E – same as hitting the Open button in Adobe Camera Raw. Go straight to Photoshop, Do Not Pass Go, and do not (yet!) spend £200!

– DK

6
software, Tests / Reviews, Uncategorized

Nikon D3S video: dark, rain and wind 400mm f/2.8

Posted on By

As part of my tests of the Nikon D3S (British Journal, report in December, with additional material by Richard Kilpatrick who is shooting with Nikon on November 25th at a press event) I dragged the £6,000 400mm f/2.8 AF-S IF ED G supertele into the rain as darkness gradually forced the ISO up from a mere 10,000 to the maximum 102,400. The object was make a short video showing rising floodwaters, no threat in our town but still dramatic to watch.

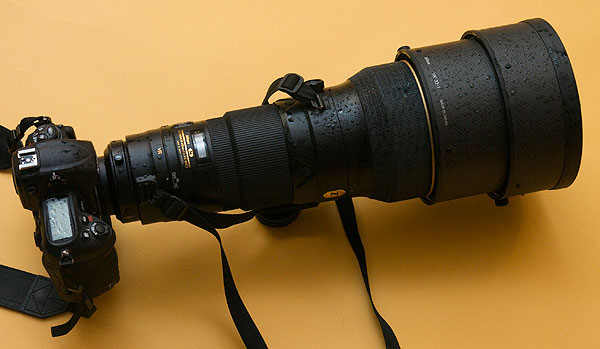

wet400mmcombo-web

Here’s how it came back from the hour in the rain, a quick wipe down with an oily rag and it was all as good as new. Actually, it needed a thorough drying with the towel then a clean up with a lint free microfibre cloth to remove dust and towelly stuff. The very deep lens shade kept the exposed front element totally dry despite the wind and rain; I just made sure it was never aiming into the wind.

During the shoot, wind noise was a major problem. I locked the microphone to level 2 manual gain, not automatic which would have been a disaster. Many clips had to be shortened, some discarded due to violent wind noise I could not mask. The sheer weight of this combo made lugging it with a decent Slik tripod (pan and tilt head for video) difficult; I drove to the evening location with the rig laid flat on the back seat of the car, but still had to walk several hundred yards for some shots. I wore a Tog24 parka and found that by pulling the fur-lined hood over the camera body I could cut out nearly all the wind noise. I must have looked like a view camera operator with a dark cloth, or something out of Monty Python with my jacket pulled up and the hood over the Nikon!

But, this seemed such a good solution to the wind noise I would consider unzipping the hood from the parka and using it as a baffle in finer weather.

My favourite part of the video is the one with the worst noise, where I was not able to keep the wind away from the direction of shooting – the sequence of the road (flooded by the morning) with headlights, tail lights and cars in rain. This consists of three takes blended with long crossfades. During each take, the manual focus of the 400mm used at near wide open f/3.2 aperture was pulled to bring the moving traffic in and out of focus, and create huge bokeh circles from the lights. This would be impossible with a camcorder and not all that easy with a conventional high-end video kit. The combination of full frame 35mm format and the fast 400mm has enabled a highly effective cinematic technique to succeed on the first time of trying. With some markers on the focus ring, some practice and many more takes the result could have been refined further.

But I was getting very wet and so was the camera!

The first part of the video is all on the 400mm with tripod, with High ISO video enabled. The ‘next morning’ stuff is on the 24-70mm, hand held, locked down to ISO 200 at f/8.

I’m not sure when our final review of the camera will appear in the British Journal, it should be early December.

The video is encoded to best quality 720p from iMovie09, and can be best be downloaded and viewed without any YouTube jerkiness at full res if your connection is not good.

– David Kilpatrick

1
Techniques, Tests / Reviews, Uncategorized

Nikon D5000 short film with pull focus

Posted on By

Though autofocus is not possible with live video in any current true DSLR (the Panasonic GH1 promises this) it is possible to use pull-focus effects with a little planning. We now have a Nikon D5000 – it won the competition for best fine image detail when comparing results frame by frame with Canon’s nominally higher resolution rival. It was also a very good deal, £629 inc VAT with an 18-55mm VR kit lens and a SanDisk Ultra II 8GB SDHC card plus Crumpler Messenger Boy 2500 bag thrown in free (from Jacobs). You Tube sample –

Continue reading »

0
Techniques, Tests / Reviews, Uncategorized
